Losmandy G11S Equatorial Mount

$2,195.00

Losmandy G11S Equatorial Mount

$2,195.00
SKU:
MG11S
Shipping:
Calculated at checkout
Quantity:

Out of Stock

Share

Product Description

SPECIFICATION: R.A. / DEC. AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • One 3.750” diameter needle thrust bearing.
  • One 2.000” diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 5.625” diameter, 7075 aluminum worm gear, 360 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • Variable slip clutch, both axes. One knob per axis design.
  • Porter Slip Ring Design
  • 1.250” diameter stainless steel shafts.
  • Through the axis polar scope mounting, works in Northern and Southern Hemisphere. Polar scope optional.
  • Instrument Weight Capacity 60 LBS
  • Equatorial head weight 33 lbs.

Click for Larger ImageG11 Equatorial Head Telescope Mount




Click for Larger ImageG11 Equatorial Telescope Mount Elevation Adjustment





Fully locking, unique tangent arm design altitude adjustment, 6-68 degrees, large knob for easy alignment.

Laser engraved latitude scale in 2 degree increments.




Click for Larger ImageG11 Equatorial Telescope Mount Elevation Adjustment
----Internal View----


Click for Larger ImageG11 Equatorial Telescope Mount Azimuth Adjustment





Single knob azimuth control, bi-directional +/- 8.5 degree.




Click for Larger ImageG11 Equatorial Telescope Mount Setting Circle





5.000” diameter laser engraved setting circles, 4 minute R.A., vernier reading to 1 minute / 1 degrees DEC., vernier reading to 0.1 degree. R.A. circle engraved for Northern and Southern Hemisphere.




Click for Larger ImageG11 Saddle Plate for Losmandy and Vixen





Dovetail saddle-plate fits both "D" Losmandy Style Dovetail or Vixen Style Dovetail. Allows for the interchanging of any tube assembly-reduces need for DEC. weights.




Click for Larger ImageG11 Saddle Plate Detail




Click for Larger ImageG11 Equatorial Telescope Mount Weight Bar





5.625” diameter, 7075 aluminum worm gear, 360 tooth.

Dual supported, ball bearing housed ground High Precision Brass Worm.

*(image shown with worm cover plate removed)


Click for Larger ImageG11 Equatorial Telescope Mount Weight Bar





Removable stainless steel 1-1/4 inch diameter weight shaft w/safety knob.

21 lb counterweight.

7 lb and 11 lb extra counterweights available.

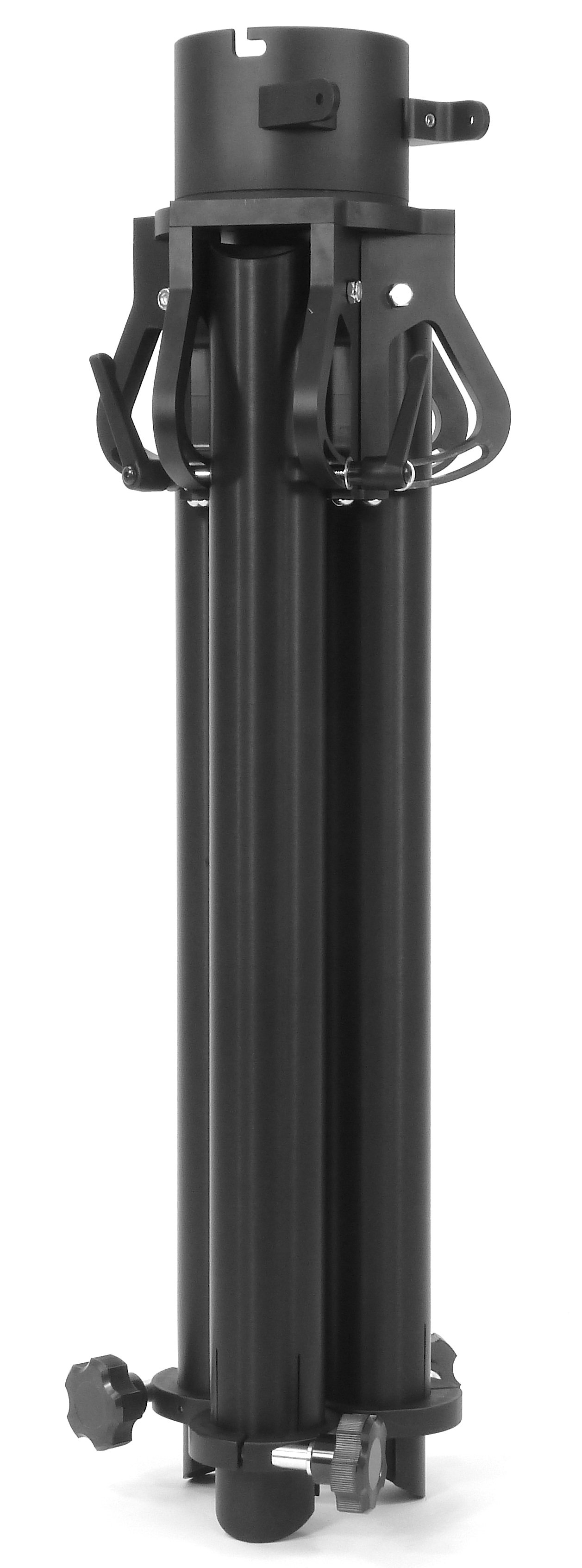

Click for Larger ImageTelescope Tripod Folding





FOLDING HD TRIPOD

All machined aluminum, black anodized

Tripod height, adjustable from 33” - 48”

Folding leg design for easy transporting.

Tripod weight 35 lbs.

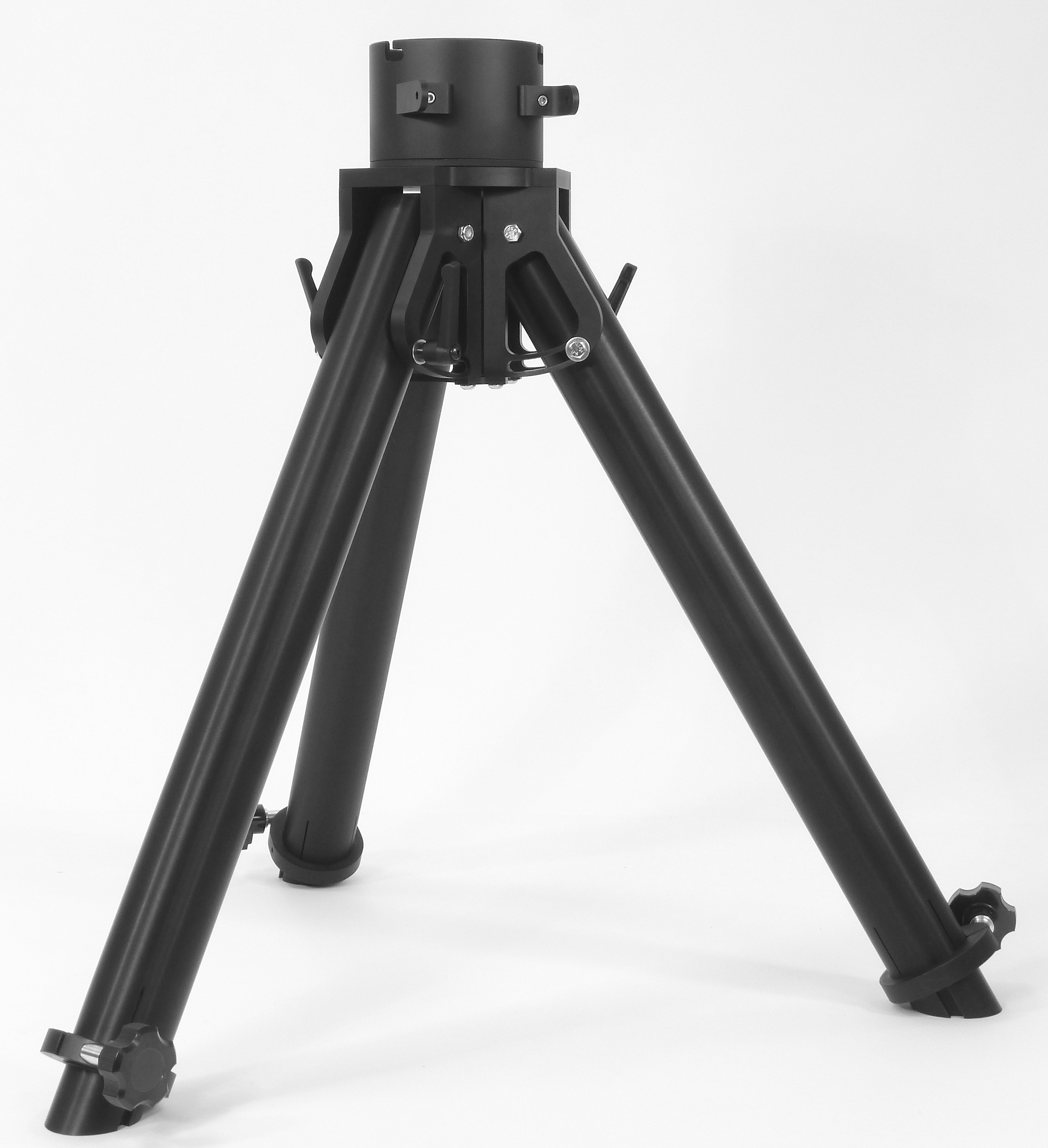

Click for Larger ImageHeavy Duty Folding Telescope Tripod




DRIVE ELECTRONIC OPTIONS - (S) DIGITAL OR (G) GEMINI GOTO

DUAL-AXIS DIGITAL ELECTRONICS (S)

  • Diamond push button pattern.
  • R.A. and DEC. reversing switches.
  • 160 oz/in stepper motor, 0.5 arc sec. step.
  • Three guiding rates; 30%, 50% and 2x sidereal rate.
  • Three setting rates; 4x, 8x, 16x sidereal rate.
  • Quartz tracking rates: sidereal, solar, lunar, king.
  • Periodic Error Correction (PEC).
  • Programmable DEC. Backlash Compensation (TVC).
  • Control panel dimmer.
  • Accepts auto-guider systems.
  • Northern and Southern Hemisphere operation.
  • 12 volt DC - 500ma power use.
  • Tiltable control panel for easy access.
  • Small hand control box for comfortable use.
