Stellarvue's SVX152T is a hand figured, high resolution telescope. This is an exceptional visual refractor that produces amazing images when used with the Stellarvue photographic field flattener. Watch the SVX152T Apo Triplet Refractor Video!
Availability: While it takes up to a year to perfect each SVX objective, we operate one year in advance. Each month we complete dozens of SVX objectives and send them to the coating lab. Our goal is to have a waiting period of less than 30 days, but this is not always possible since demand varies, and each individual objective takes a different amount of time to perfect. Our current estimate for delivery times may be found on our "availability page" but it is best to contact us at (530) 823-7796 for more specific information on delivery times for a specific telescope you want, if ordered now. Each SVX objective we hand figure takes a significant amount of time. We will not rush this process. Time is not of the essence. Do not order a telescope from us if you cannot wait the additional time it may take to perfect your individual optic.
Coatings: Broadband, full multi-coatings on each surface enhance contrast and eliminate unwanted reflections.
Focuser Selection:
- The Stellarvue 3" focuser. This focuser has 4.5" of travel and 2" and 1.25" compression ring adapters. This is our brand focuser that is well known as a stable and smooth 3" focuser with a highly accurate 8 to 1 reduction that allows absolutely precise focusing. This is the same as used on our smaller aperture telescopes. Both Optec and ZWO motors attach directly to this focuser allowing even more precise focusing. If you intend to use our future reducer/flattener with a full frame camera we recommend upgrading to a 3.5" focuser.
- The Starlight Instruments 3.5" focuser, with 4.5" of travel and 2" and 1.25" compression ring adapters. This is an American-made focuser that is equally smooth to the focuser above but is larger. Both Optec and Starlight Instruments make motors for these focusers.
- The Moonlight Nightcrawler 3.5" focuser with various extension tubes and 2" and 1.25" adapters. This is an advanced, electronic, computerized focuser preferred by dedicated imagers. It is the most expensive upgrade, but for those who want perfection when it comes to imaging, this is considered one of the best. The downside is a very short focuser draw tube length which is great for imaging stability, but requires various extensions when converting to visual use.
*Please note that the default color for the Nitecrawler will be RED unless specified otherwise. For a full list of available color options visit www.focuser.com.
Photographic Field Flatteners
Purchase photographic field flatteners when you buy this telescope and save up to $300. Select the options at the top of the page to add these photographic field flatteners.

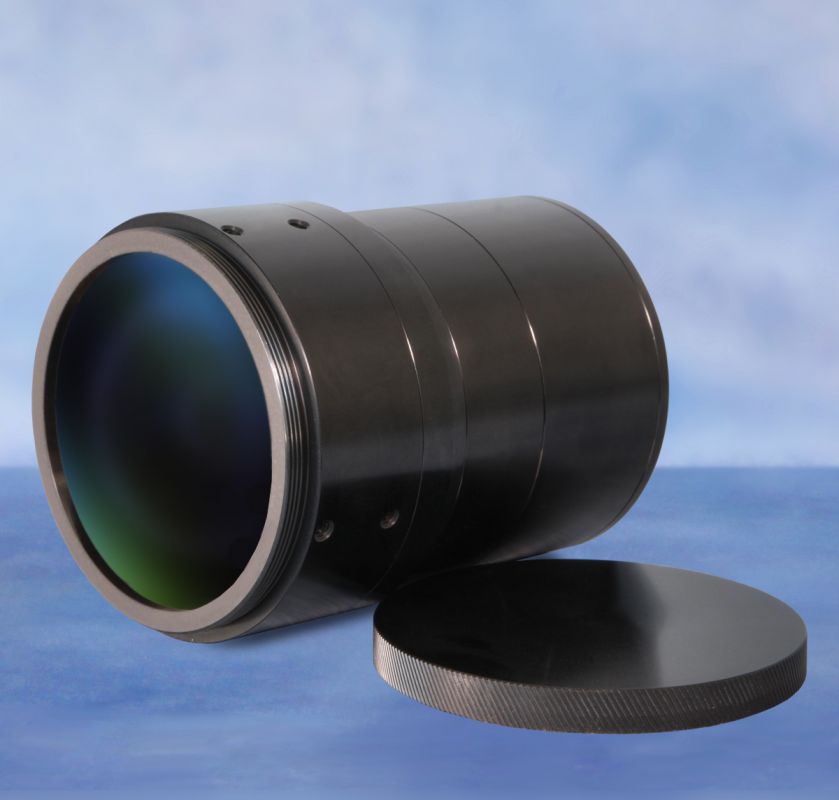

Field Flattener: To image with this telescope, use the SFFX-3 photographic Field Flattener.
Reducer Flattener: The "SFFRX-152180" .75X full frame reducer/flattener reduces the speed of the SVX152T from f-8 to f-6. This is a dedicated reducer/flattener made specifically for the SVX152T and SVX180T.
When you buy these photographic correctors with the telescope, we will include the necessary adapters needed to attach to the focuser you have selected. The backfocus of this reducer/flattener can be easily modified to match your particular requirement. This is accomplished by changing out the extension tube(s) (see the SFFRX-152180 and SFFX-3 pages). This gives users the ability to add an electronic rotator into their image train.
To order simply:
2. Select the focuser you are using3. Type in the backfocus for your complete imaging train in millimeters. This is the distance from the camera sensor in the camera to the attachment thread at the front of your imaging train. This includes the camera, filter wheel, off-axis guider and (if you have one) a rotator. Most astronomy cameras and DSLR cameras have a 55 mm back spacing.
SPECIFICATIONS:
Objective lens:
Air-spaced 152 mm, 1200 mm focal length (approximately f-8) fully multi-coated, apochromatic triplet using a combination of Ohara FPL-53 extra low-dispersion center element with a Lanthanum rear element.
Tube Assembly:
All aluminum, Instrument White, fully baffled, 6 1/8" diameter tube. Telescope is 44 1/2" long with dew shield retracted and 52" long when extended.
Dew Shield:
Retracting aluminum dew shield with a 7.33" diameter and 11 3/4" total length. Instrument White color, laser logo engraving, and black anodized aluminum fittings.
Weight:
Telescope tube weighs 23.2 pounds. With rings and TP-19 Losmandy style rail added, the total weight is 28 pounds.
Focuser:
Your choice of either the Stellarvue 3" focuser, Feather Touch 3.5" focuser or the Moonlight Nightcrawler 3.5" focuser.
The Stellarvue 3" focuser weighs 3.12 lbs, the Feather Touch 3.5" focuser weighs 5.8 lbs, and the Moonlight Nitecrawler 3.5" focuser (WR35) weighs 8 lbs.
Rings:
Very heavy-duty CNC-machined mounting rings, American-made using 6061 T6 aluminum plate. Five threaded 1/4-20 holes top and bottom spaced 1.5" and 60 mm apart with one in the center. 5 mm side hole for reflect finder mounting.
Rail: Your choice between the Losmandy-Style TP013A or TP019, or the Vixen-Style TP012.
Handle: The Stellarvue #HAN-1 handle is included.
Case:
Heavy duty American-made hard case made of 3/8" plywood, durable hard cover, handle, and wheels. Outside dimensions are 51" X 13" X 13". The wheels stick out 2" from one end. The interior high quality foam cutout is 46" X 8" X 8".
Finder Scope:
Stellarvue F050IW2 correct image optical finder and R050DA mounting rings may be purchased separately.
Visual Accessories:
Select the "Add Visual Accessories and Save" drop down above and save on all the visual accessories you will need. You can purchase our 2" quartz dielectric diagonal upgrade for only $199 and save big when you add our best Optimus eyepieces.
Light Gain:
471.5 times that of the naked eye.
Color Correction (1-10):
10 Resolution: .76 Arc Seconds
Maximum magnification:
Depends on seeing conditions. There is no reason a high-end, hand-crafted apochromat cannot be taken to 100X per inch under steady skies.
Click here for our online operator's manual: SVX152T Manual
