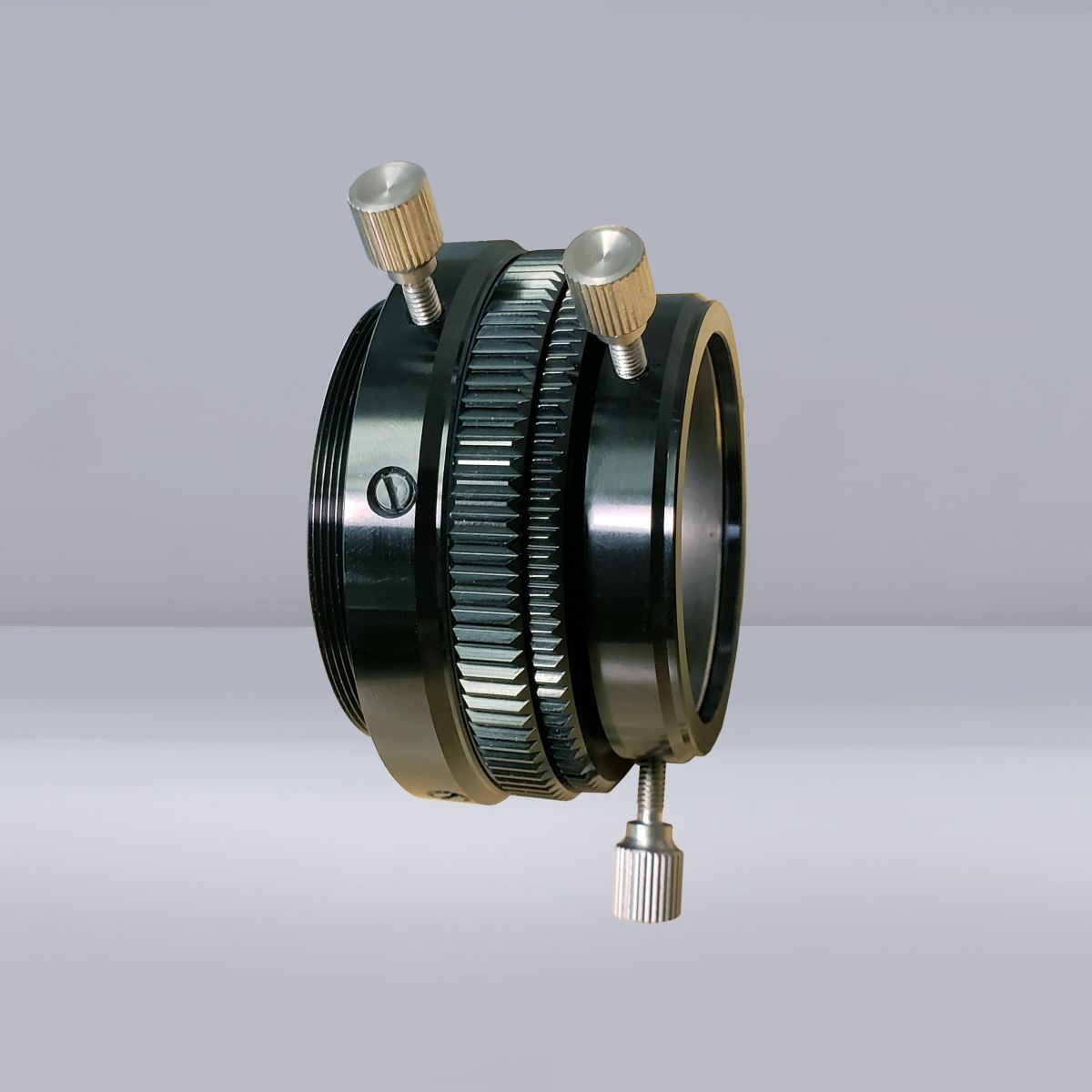

This inexpensive rotator is made for visual use and will work with our M69 thread which is used on our larger M69 threaded extension tubes. It will not fit onto other thread sizes.
This 2" adapter does many things.
- It serves as a 2" visual back for focusers that have an M63 female thread by removing the M69-M63 adapter.
- It is a 360 degree rotator with nylon bearing surfaces.
- Unthread the 2" back and it will accept any accessory that attaches with the M54 X .75 thread.
- Unthread the first knurled ring and you have an M68 X 1 thread which accepts many flatteners including our current SFFX-1 flattener, our former SFF3 and SFF4 flatteners and other 2.5" flatteners that use the M68X1 thread.
Cnc machined and black anodized finish.

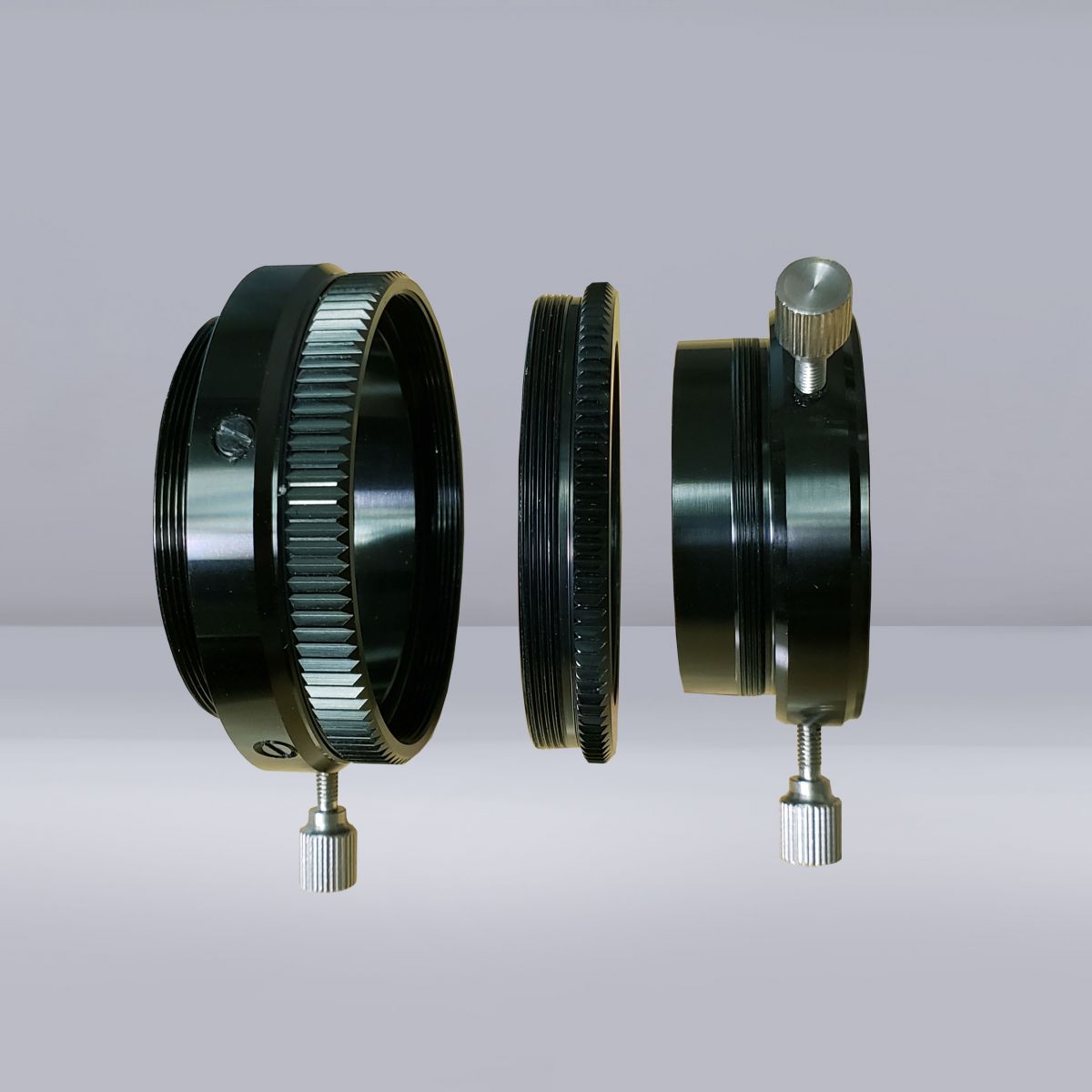

This rotator has three configurations. It is 20.75 mm in length when using the 68 mm female connection, 25.15 mm long connecting to the 54 mm female thread, and 37.25 mm long when using the 2" compression clamp. It has six nylon bearing screws, a Teflon thrust bearing and a thumb screw to lock rotation.
