Optec ThirdLynx DirectSync SVX35 Motor (for 3.5" SV Focusers)

SKU: OTC-19980
Starting at
$525.00
Quantity:

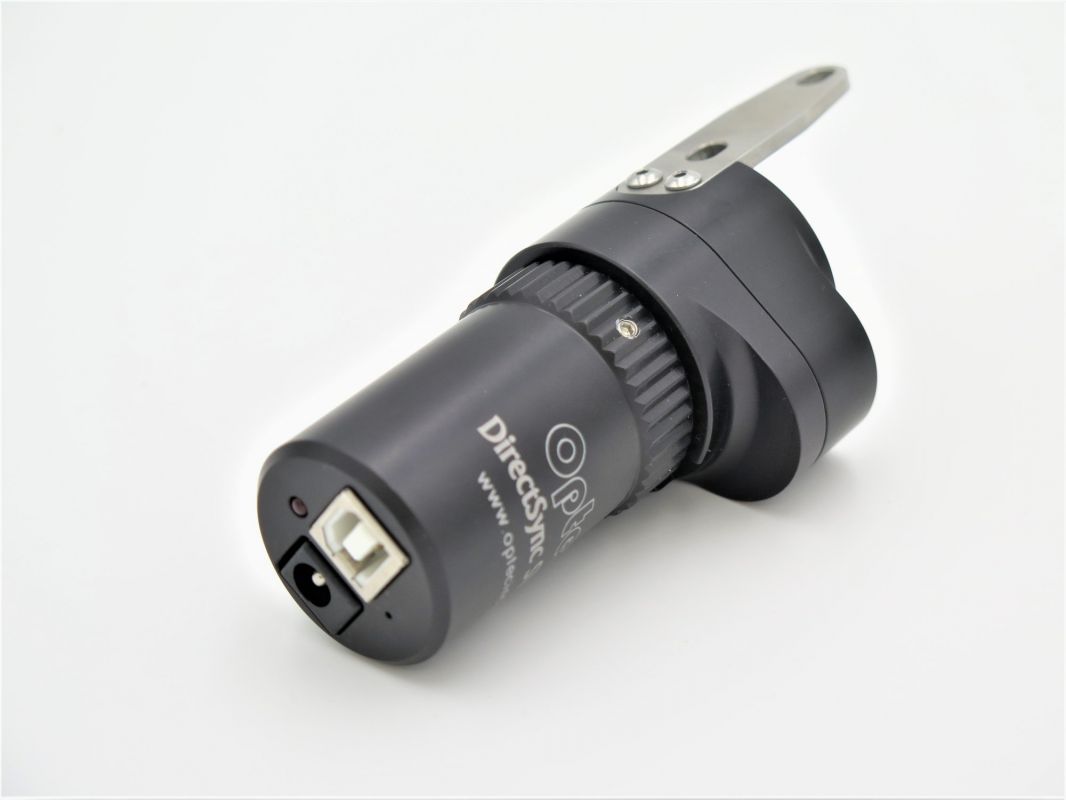

Optec's DirectSync SVX30 motor was developed specifically for the large Stellarvue 3.5" series focusers and features our ThirdLynx control circuit.

Similar to our original DirectSync SV30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SVX35 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required.

USB connectivity and fully compatible with all existing FocusLynx software.

Compatibility
:

  • Stellarvue 3.5-inch focuser,
  • Stellarvue FSV-35 focuser,
  • Many Large Stellarvue model telescopes including:
    • SVX130T
    • SVX140T
    • SVX152T
  • Specifications:
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.55" (90mm)
  • Weight: 6.0 oz (165 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Controller:  Integrated ThirdLynx
  • Connectivity:  USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA

Package Contents:

  • ThirdLynx Motor
  • 3’ USB Cable
  • 15’ USB Cable
  • Allen Wrench
  • Power Supply with cord

Software and Downloads:

Optional Accessories:

  •  #17070 - USB Power Converter cable.
