Optec ThirdLynx DirectSync SVX30 Motor (for 2.5" and 3" SV Focusers)

SKU: OTC-19978
Starting at
$525.00
Quantity:

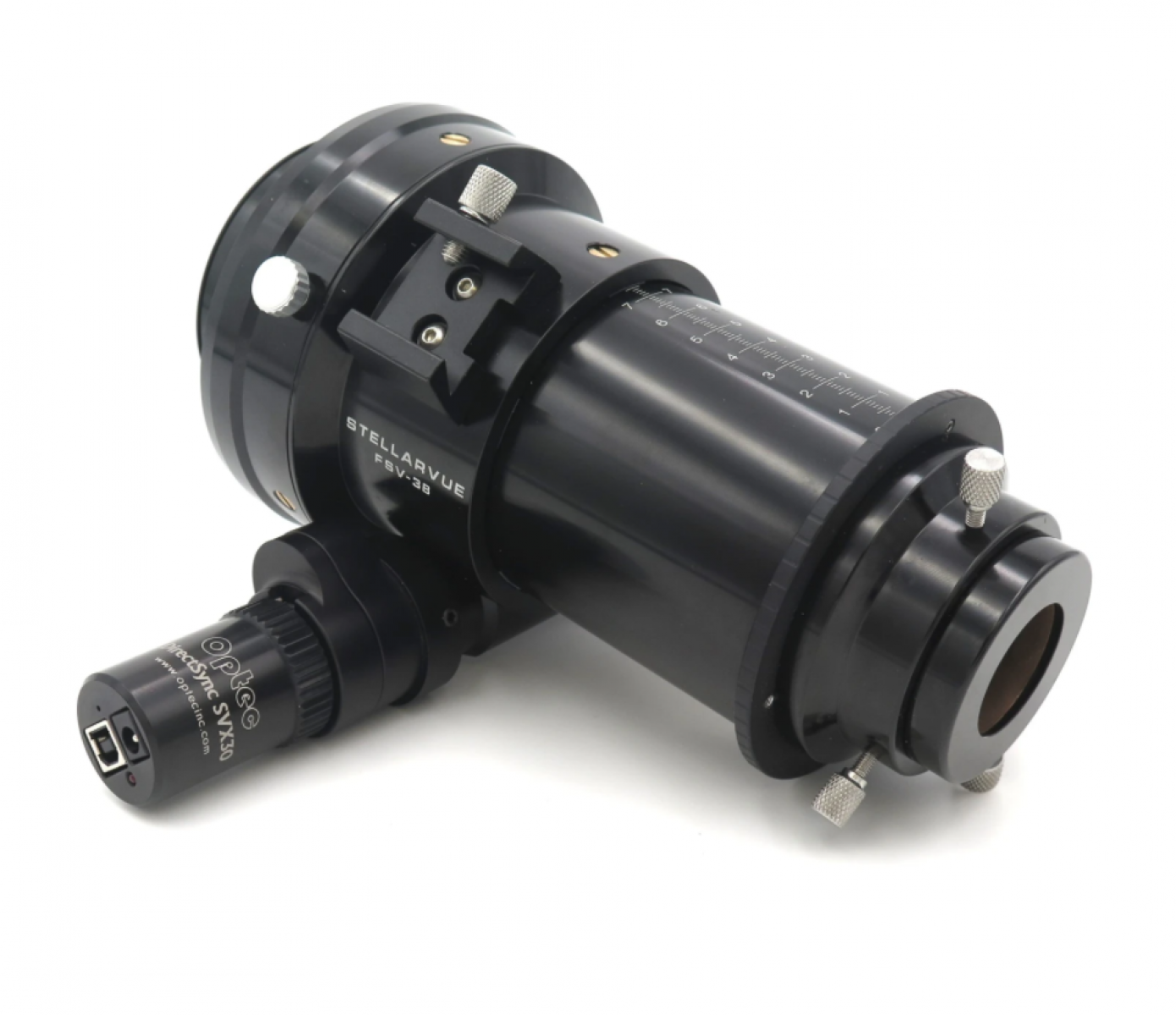

Optec's DirectSync SVX30 motor was developed specifically for the Stellarvue FSV-3B series focusers and features our ThirdLynx control circuit.

SVX30 also fits a variety of Stellarvue focusers including SVF25 and SVF30 3-inch focuser.   Similar to our original DirectSync SV30 motors with the same Best-In-Class clutch mechanism, the new DirectSync SVX30 includes an all-new integrated control circuit built into the focus motor end cap.

No external controller is required.

USB connectivity and fully compatible with all existing FocusLynx software.

Compatibility
:

  • Stellarvue SVF25 2-1/2-inch focuser,
  • Stellarvue FSV25B 2-1/2-inch focuser,
  • Stellarvue SVF30 3-inch focuser,
  • Stellarvue -25SV 2-1/2-inch focuser,
  • Stellarvue -3SV 3-inch focuser,
  • Many Stellarvue model telescopes including
    • SV080ST-25SV,
    • SV80-3SV,
    • SVR102T-25SV 102mm Raptor.
Specifications:
  • Motor Housing Width: 1.9" (48mm)
  • Overall Length: 3.55" (90mm)
  • Weight: 6.0 oz (165 g)
  • Step Resolution: 1.1 micron per step
  • Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
  • Controller:  Integrated ThirdLynx
  • Connectivity:  USB 2.0 A-B cable (included)
  • Temperature Sensor: Analog Devices ADT7302 embedded
  • Input Power: 12-volts DC, 2.5 x 5.5mm plug
  • Current Draw: Maximum draw approx. 350mA

Package Contents:

  • ThirdLynx Motor
  • 3’ USB Cable
  • 15’ USB Cable
  • Allen Wrench
  • Power Supply with cord

Software and Downloads:

Optional Accessories:

  •  #17070 - USB Power Converter cable.
