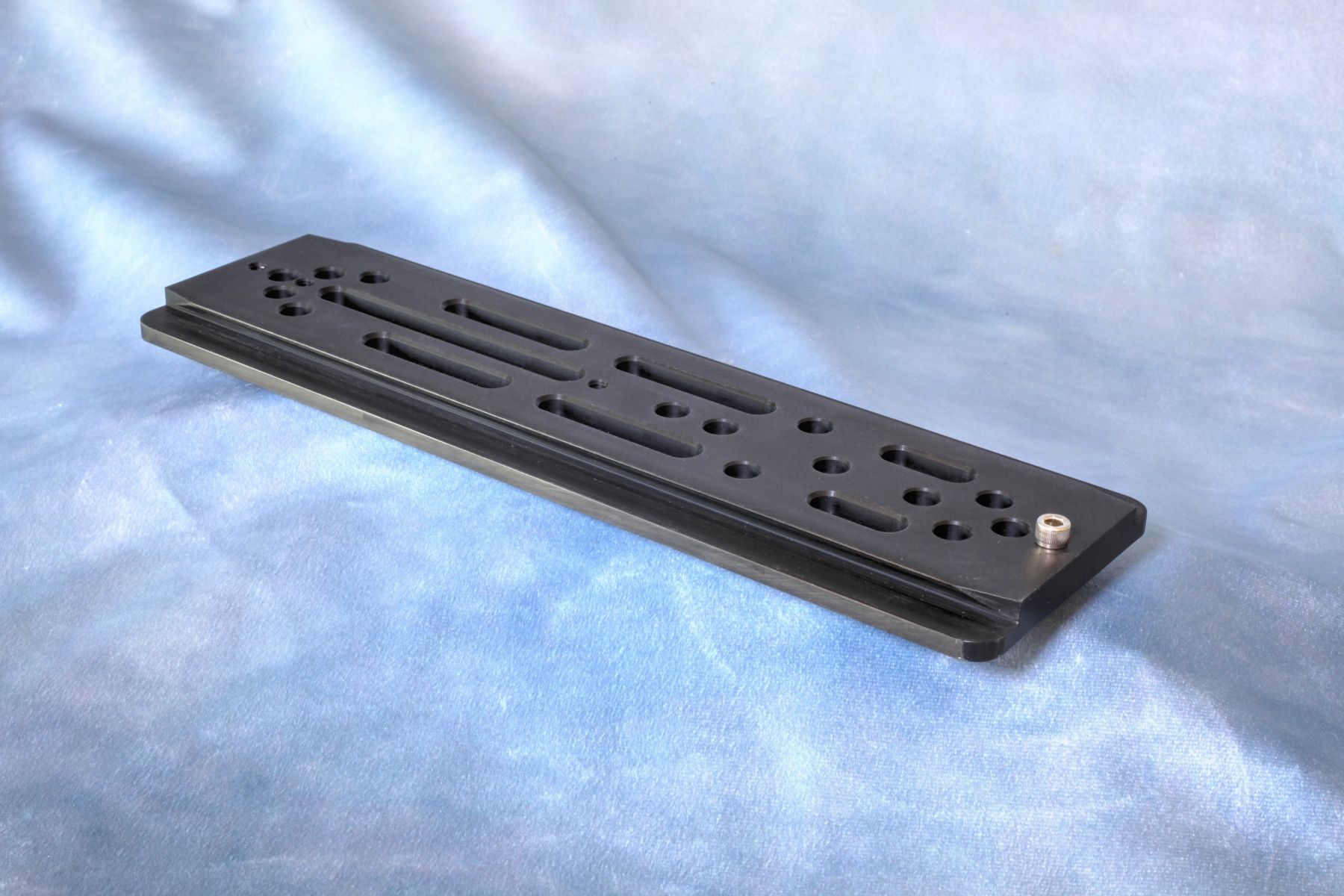

This is the Stellarvue version of our standard Losmandy-style D plate. This "A" version has longer slotted openings and is thicker than the former version. This ensures that each ring is mounted with two screws, and it allows the user to vary ring spacing with less limitation. The plate is 13" long. The plate includes multiple countersunk slotted openings for either the standard 1/4-20 screws or metric 6 mm screws. Each plate comes with a safety screw (shown in the picture), four 1/4"-20 x 5/8" and four m6 x 16 mm socket cap head screws for ring mounting. Make sure you select the screws with the proper thread size to avoid damaging your rings.
Weight = 1lb 13oz
Weight = 1lb 13oz
