AZ100 with Encoders

Name: AZ100 with Encoders
SKU: M-R-20031201a
Price: 2302 USD
Availability: OnlineOnly

SKU: M-R-20031201a

0 reviews

Starting at

$2,302.00

Recommended Add-ons and Accessories

Product	Price	Quantity
M-R-21131200a - AZ100 Dual Saddle Plate. 200mm long. DV Profile About This Product Details Dual saddle with Vixen 'V' and Losmandy 'D' profiles. CNC machined and black anodized finished and fitted with stainless steel hardware. The center of the saddle has an M16 thread to accept a counter-weight shaft.	$256.00 each
M-R-20531200a - AZ100 Pan Tilt Handle. Black Anodised. About This Product Details Fits to the inside face of the saddle with 2 x M6 bolts and can be mounted on the left or right side of the mount. Handle is 350mm or 14" long. Compatible with both 'D' or Dual 'DV' saddles. The included threaded block insert provides an angled mounting position.	$119.00 each
M-R-22033200a - Counterweight Shaft and Mounting Flange for AZ100 About This Product Details 25mm diameter stainless steel shaft and mounting flange. Supplied with anodized aluminum safety knob with integral stop washer.	$126.00 each
M-R-22133200a - Counterweight Shaft About This Product This stainless counterweight fits the AZ75 and AZ100. it is a 25mm diameter stainless steel shaft. Ir uses an M16 thread screws to screw directly into a saddle or mounting flange. It is supplied with anodized aluminum safety knob with integral stop washer.	$70.00 each
M-R-CW3.75 - Counter weight. 3.75Kg 125mm diameter Stainless Steel. About This Product Details 125 mm diameter, 3.75Kg stainless steel weight. 40mm thick. 25mm bore. Use this with the Rowan mounts when used with only one telescope. Your mount will need the following counterweight shaft and adapter: For the AZ75 use: This shaft and adapter For the AZ100 use: This shaft and adapter The mount does not have to be perfectly balanced and you can use the guide below to get the proper weights for your telescope. How many counter-weights to order? For scopes under 5Kg or 10 pounds: Use without a counter-weight. For scopes from 5-8Kg or 11 - 17 pounds: Use 1 counter-weight. For scopes from 9Kg to 14 kg or 19 - 30 pounds: Use 2 counter-weights. For scopes from 15Kg to 20Kg 0r 31 - 45 pounds: Use 3 counter-weights. These figures are approximate and equate to counter-weights of 1/2 to 2/3 the weight of the OTA.	$165.00 each
CW8S - 8KG Counterweight and shaft About This Product This is a combination 8 KG counterweight and the stainless steel shaft that fits it. The 8KG counterweight is painted black and has a large hand knob. The threaded screw connected to the tightening knob has nylon tip to keep the shaft from getting scratched. This shaft threads into the Rowan saddle or the Rowan flange if only one saddle is used. The shaft has a safety screw knob at the end. This selection does not include the flange. If you need this and the flange make this selection.	$169.00 each
CW8SF - 8KG Counterweight, shaft and flange mount for Rowan AZ100 About This Product This is a combination 8 KG counterweight, the stainless steel shaft that fits it and the flange that attaches to the AZ100 mount. The 8KG counterweight is painted black and has a large hand knob. The threaded screw connected to the tightening knob has nylon tip to keep the shaft from getting scratched. This shaft threads into the Rowan saddle or the Rowan flange if only one saddle is used. The shaft has a safety screw knob at the end. This selection includes the mounting flange which you will not need your mount has two saddles. If you have two saddles and you need this weight and shaft only make this selection.	$199.00 each

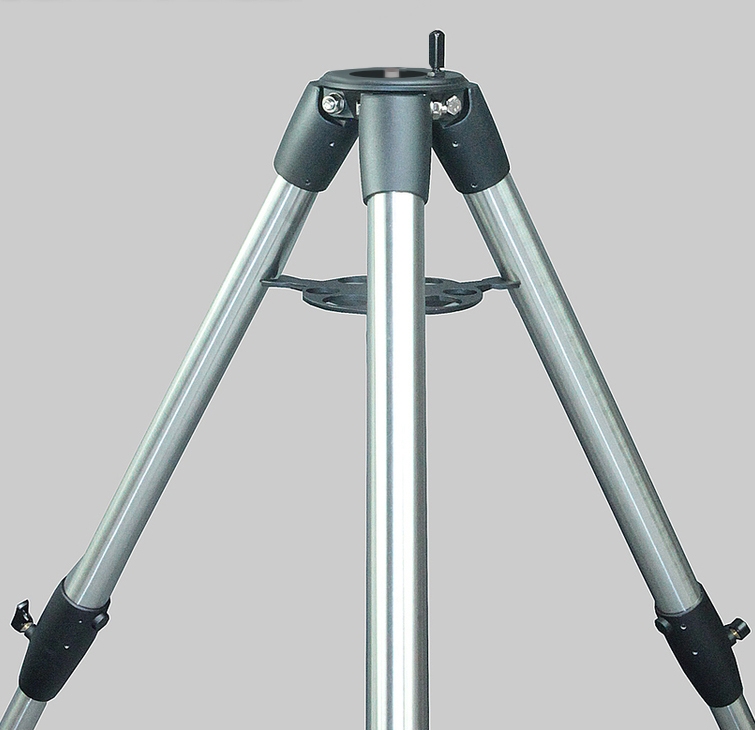

TSS - Stainless Steel Tripod About This Product This is the heavy duty, stainless tripod is used on the Stellarvue M002CS tripod/mount system and it also works perfectly on Rowan AZ75 and AZ100 mounts. This tripod is used on the heavy duty Celestron CGEM tripod so it is not the same as other lighter-weight stainless tripods. Has a small eyepiece tray and uses an M12X1.75 threaded attachment stud.	$395.00 each
M-L-FHD - Losmandy Folding Heavy Duty Tripod (FHD) About This Product Folding HD tripod with MA top for GM 8 & G-11 mountswith adjustable leg design. Height range from 33" to 52" All heights are from ground level to top of tripod, vertical. Carries up to 425 lbs. Tip to Tip legs retracted 34" Tip to Tip legs extended 53" Folded Completly Down with Legs Retracted 14" x 14" x 39" Wt. 35 lbs. *This item is drop shipped directly from the vendor and usually takes about 2 weeks to arrive.	$1,100.00 each
M-N-DSCPRO - Nexus DSC Pro with WiFI About This Product This is the Astro-Devices Nexus DSC-Pro digital setting circles control unit. Advanced Digital Setting Circles Nexus DSC Pro is an advanced digital setting circles computer that packs all the latest technologies into a device designed for your telescope. DESCRIPTION The Nexus DSC Pro boasts a powerful CPU and larger flash memory & RAM that allow you to spend more time doing what you really want: looking at the sky. With the Pro’s upgraded CPU, memory, RAM, and sensors, you can store more objects in the database, search the database quicker, use encoder speeds of up to 100 million steps per second, and understand the environment around you better. The Pro will also have multi-lingual support, planned for the future. You can use the Nexus DSC Pro with planetarium software (such as SkySafari Plus/Pro, Starry Night, Cartes du Ciel, and TheSky) on WiFi-enabled computing devices (iPhone, iPad, iPod Touch, Apple Computers, Android phones/tablets, Kindle Fire, and Windows based PCs/tablets). MAIN FEATURES Red OLED graphical display Full numeric tactile keypad Practically unlimited number of celestial objects in its database* Internal rechargeable Lithium battery Built-in GPS receiver Powerful Identify and Tour modes Built-in sensors: barometric pressure, humidity and temperature Multi-point telescope pointing analysis system Supports up to 512GB microSD cards Optional WiFi interface to your tablet/smartphone/laptop Supports ServoCAT, SiTech and SkyTracker motor controllers User catalogues (practically unlimited*) can be added and used Can be charged/powered from an external 5-16V DC power source Check out the full features of the Nexus DSC Pro by downloading the specifications. All instruction manuals and user guides can be found on our website on the Manuals & Guides page. All software updates can be found on the Downloads page. WHAT’S IN EACH BOX 1 x Nexus DSC Pro unit 1 x Nexus DSC Pro User Manual 1 x Nexus DSC Pro Quick Setup Guide 1 x 30cm USB charging cable 1 x 90cm car lighter adapter cable Please note that encoders and/or an encoder kit are not included with your purchase of our Nexus units, they have to be purchased separately. ADD-ONS (available at extra cost): Universal power adapter A WiFi card (installed in the Nexus DSC Pro device) PRODUCT DETAILS Dimensions: 140mm x 120mm x 38mm (LxWxH) Weight: 286g Notes - Nexus DSC Pro’s internal flash memory currently contains in excess of 73,500 objects while the microSD card extends this currently to over 2.5 million objects but the limiting factor is the size of the microSD card used. ** - User catalogues can be placed on a micro SD card only.	$349.95 each
M-R-22550200a - Nexus DSC shelf with adjustable ball joint. About This Product Detail The Nexus DSC shelf with adjustable ball joint is a handy accessory designed for telescope enthusiasts. Let’s delve into the details: Product Description: The Nexus DSC shelf is CNC machined and features a sleek black anodized finish. It comes equipped with stainless steel hardware. This shelf allows you to place your Nexus DSC (Digital Setting Circles) out of your hand while keeping it within easy reach. It’s specifically designed for the AZ100 mount from Rowan Astronomy 1 2. The adjustable ball joint ensures flexibility in positioning, allowing you to align the shelf as needed. Technical Specifications: Material: CNC machined aluminum Finish: Black anodized Compatibility: Fits the Nexus DSC Mount Compatibility: Designed for the AZ100 mount Corrosion Resistance: Yes	$44.00 each

Quantity:

Description Ratings and Reviews

AZ100 Basic mount with encoders and slow motion controls

This is one of the very best CNC machined, alt-azimuth mounts on the market. It is machined in the United Kingdom by Rowan. It has a black anodized finished and is fitted with stainless steel hardware.

Specifications include an 80.0 mm diameter 7075 aluminum wheel gear and brass worm gear in adjustable worm block.

32mm diameter 7075 aluminum axis shafts supported in high quality ball and taper bearings.

features include adjustable friction clutches on both axis and 360-degree slow-motion controls allowing simultaneous push-to and slo-mo tracking.

High quality flexible slow-motion cables included. Pair at 340mm & 440mm long. (custom lengths available)

Both slow motion controls remain in alignment with the observer at all times. Load capacity is 15-20 kg (about 44 pounds) on each side depending on scope length.

Mount weight: 8kg (about 17 1/2 pounds).

Mount weight with 2 x DV saddles 9.8kg (about 22 pounds)

Mount base has M12 tapped hole to attach to tripods.

Pre-installed Renishaw 152,000 step encoders.

If you are using your existing Nexus DSC, please check your encoder lead is compatible with the AZ100 encoder pin out.

The encoder cables move with the mount and don't wrap or tangle in the AZ-axis as the mount is moved.

Options for the AZ100 Encoder Mount:

1. Dual Losmandy / Vixen section saddle: 200m long with 2 clamps. Work with either the D-rail (Losmandy design) or V-rail (Vixen style) for complete flexibility. 200m long, lightweighted back side with 2 clamps. 16mm central thread for counter-weight shaft. AZ100 Dual Saddle Plate. 200mm long. DV Profile.

2. Pan Tilt Handle: This fits to the inside face of the saddle with 2 x M6 bolts and can be mounted on the left or right side of the mount. The handle is 14" long and is compatible with both the 'D' or 'DV' saddles.The included threaded block insert provides an angled mounting position.Altitude adjusting plate - When using a 2-scope setup, both scopes can be set to the same pointing position. AZ100 Pan Tilt Handle. Black Anodized.

3. Counterweight Shaft for the 3.75 KG weight. For balancing the mount. 125mm diameter. 25mm hole. If using dual saddles, this shaft without mounting flange will thread into one of the saddles. AZ100 Counterweight Shaft - For 3.75 KG Counterweight - without mounting flange. If using only one saddle, and mounting the counterweight on the other side, get the counterweight shaft with mounting flange. AZ100 25mm Counterweight Shaft with mounting flange.

4. 3.75 KG Counterweight for #3 above counterweight shafts: AZ100 3.75 KG Counterweight.

5. 8 KG counterweight and shaft: This is an economical combination 8 KG counterweight and shaft that fits it.

If using dual saddles, this shaft without mounting flange will thread into one of the saddles. /product/CW8S
If using only one saddle, and mounting the counterweight on the other side, get the counterweight, shaft and mounting flange. /product/CW8SF

6. Stainless tripod. The AZ100 with standard M12 bushing attaches directly to this tripod with or without the pier riser below. This solid stainless tripod will provide great stability for all our telescopes up to the SVX140T.

7. Losmandy Heavy Duty Tripod and Rowan mount adapter: For heavier telescopes (SVX140T - SVX180T) we recommend this heavy duty tripod for the ultimate stability. This tripod and the Rowan AZ100 Motorized mount is the system Vic Maris uses when he takes his SVX180T to various star parties and events.

8. Pier Riser: To avoid having certain telescopes strike the tripod legs, you may need this pier riser. Pier Riser 200 mm long. If you are using the heavy duty Losmandy tripod and Rowan adapter on an SVX152T or SVX180T we recommend using the Losmandy extension if you need it. /product/losmandy-12-tripod-extension-column

9. Pier Riser Hand Knob Set: Makes it easier to set it up. Pier Riser Hand Knob set of 3 (M8)

10. Y-Axis balance plate: This allows good balancing when using a bino-viewer or heavy eyepieces. AZ100 Y-Axis Balance Plate including 24mm Alt-Axis spacer & 16.0mm shaft.

11. Knob set for Y-Axis Balance Plate: M6 Knob Set for Y-Axis Balance Plate.

12. Nexus DSC Pro with WiFi

13. Nexus DSC Pro Shelf - (mounts to the mount column).
