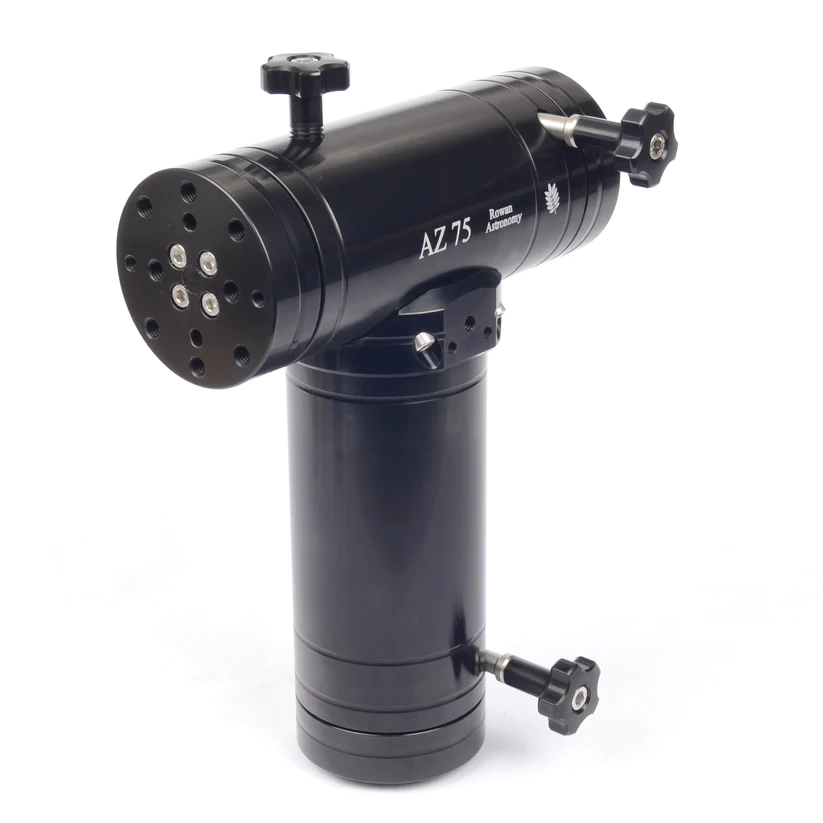

1. AZ75 Alt-Az Mount.

SKU: M-R-21531200a
Starting at
$982.00
Recommended Add-ons and Accessories
Product Price Quantity
M-R-21231215a - AZ75 Saddle Plate. 170mm long. V Profile
About This Product
M-R-21231215a - AZ75 Saddle Plate. 170mm long. V Profile

Saddle with Vixen 'V' profile 170mm long.

CNC machined and black anodized, finished and fitted with a stainless-steel hardware.

The center of the saddle has an M16 thread to accept a counterweight shaft.

$179.00 each
M-R-21131200a - AZ100 Dual Saddle Plate. 200mm long. DV Profile
About This Product
M-R-21131200a - AZ100 Dual Saddle Plate. 200mm long. DV Profile

Details

Dual saddle with Vixen 'V' and Losmandy 'D' profiles.

CNC machined and black anodized finished and fitted with stainless steel hardware.

The center of the saddle has an M16 thread to accept a counter-weight shaft.

$256.00 each
M-R-20531200a - AZ100 Pan Tilt Handle. Black Anodised.
About This Product
M-R-20531200a - AZ100 Pan Tilt Handle. Black Anodised.

Details

Fits to the inside face of the saddle with 2 x M6 bolts and can be mounted on the left or right side of the mount.

Handle is 350mm or 14" long.

Compatible with both 'D' or Dual 'DV' saddles.

The included threaded block insert provides an angled mounting position.

$119.00 each
M-R-22133200a - Counterweight Shaft
About This Product
M-R-22133200a - Counterweight Shaft

This stainless counterweight fits the AZ75 and AZ100. it is a 25mm diameter stainless steel shaft. Ir uses an M16 thread screws to screw directly into a saddle or mounting flange. It is supplied with anodized aluminum safety knob with integral stop washer.

$70.00 each
M-R-CW3.75 - Counter weight. 3.75Kg 125mm diameter Stainless Steel.
About This Product
M-R-CW3.75 - Counter weight. 3.75Kg 125mm diameter Stainless Steel.

Details

125 mm diameter, 3.75Kg stainless steel weight. 40mm thick. 25mm bore. Use this with the Rowan mounts when used with only one telescope. Your mount will need the following counterweight shaft and adapter:

The mount does not have to be perfectly balanced and you can use the guide below to get the proper weights for your telescope.

How many counter-weights to order?

For scopes under 5Kg or 10 pounds: Use without a counter-weight.
For scopes from 5-8Kg or 11 - 17 pounds: Use 1 counter-weight.
For scopes from 9Kg to 14 kg or 19 - 30 pounds: Use 2 counter-weights.
For scopes from 15Kg to 20Kg 0r 31 - 45 pounds: Use 3 counter-weights.

These figures are approximate and equate to counter-weights of 1/2 to 2/3 the weight of the OTA.

$165.00 each
CW8S - 8KG Counterweight and shaft
About This Product
CW8S - 8KG Counterweight and shaft
This is a combination 8 KG counterweight and the stainless steel shaft that fits it. The 8KG counterweight is painted black and has a large hand knob. The threaded screw connected to the tightening knob has nylon tip to keep the shaft from getting scratched. This shaft threads into the Rowan saddle or the Rowan flange if only one saddle is used. The shaft has a safety screw knob at the end. This selection does not include the flange. If you need this and the flange make this selection.
$169.00 each
TSS - Stainless Steel Tripod
About This Product
TSS - Stainless Steel Tripod
This is the heavy duty, stainless tripod is used on the Stellarvue M002CS tripod/mount system and it also works perfectly on Rowan AZ75 and AZ100 mounts. This tripod is used on the heavy duty Celestron CGEM tripod so it is not the same as other lighter-weight stainless tripods. Has a small eyepiece tray and uses an M12X1.75 threaded attachment stud.
$395.00 each
M-L-FHD - Losmandy Folding Heavy Duty Tripod (FHD)
About This Product
M-L-FHD - Losmandy Folding Heavy Duty Tripod (FHD)

Folding HD tripod with MA top for GM 8 & G-11 mountswith adjustable leg design. Height range from 33" to 52"
All heights are from ground level to top of tripod, vertical.
Carries up to 425 lbs.
Tip to Tip legs retracted 34"
Tip to Tip legs extended 53"
Folded Completly Down with Legs Retracted 14" x 14" x 39"
Wt. 35 lbs.

*This item is drop shipped directly from the vendor and usually takes about 2 weeks to arrive.

$1,100.00 each
Quantity:

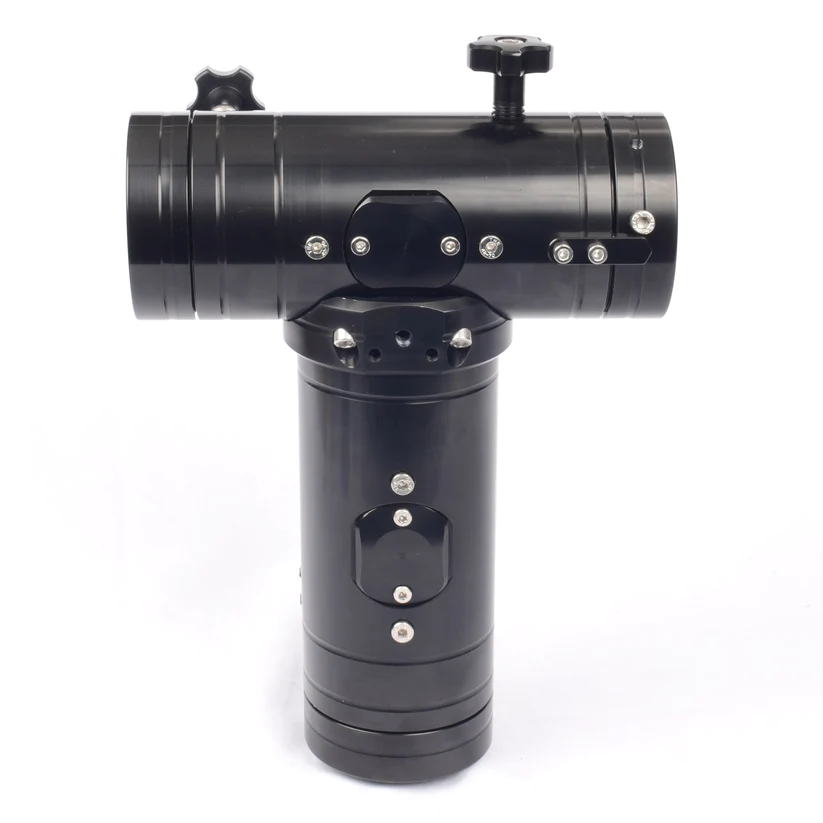

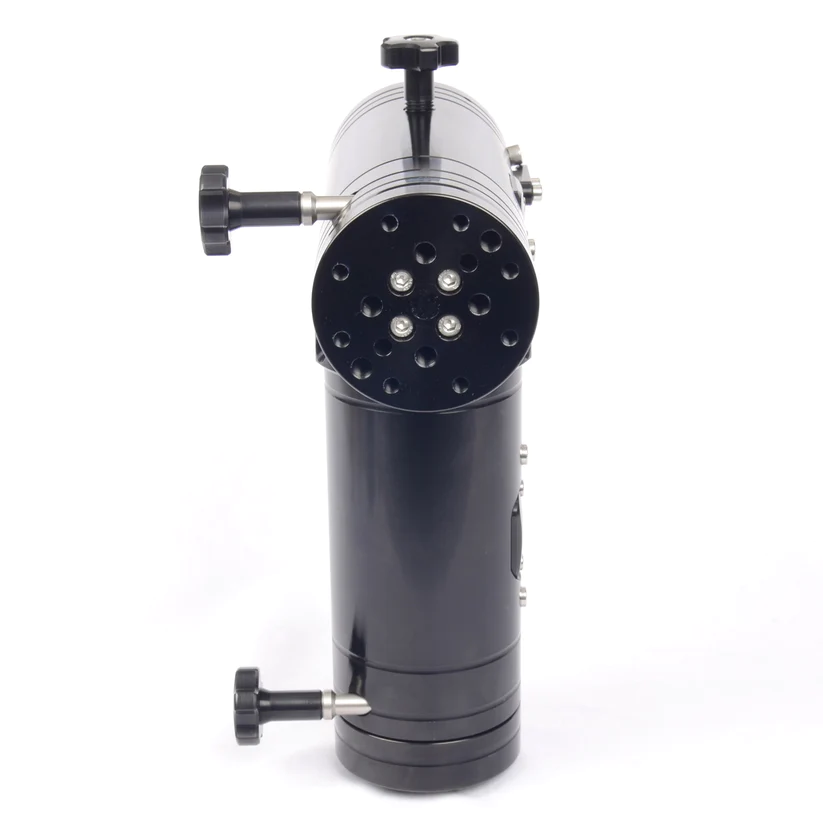

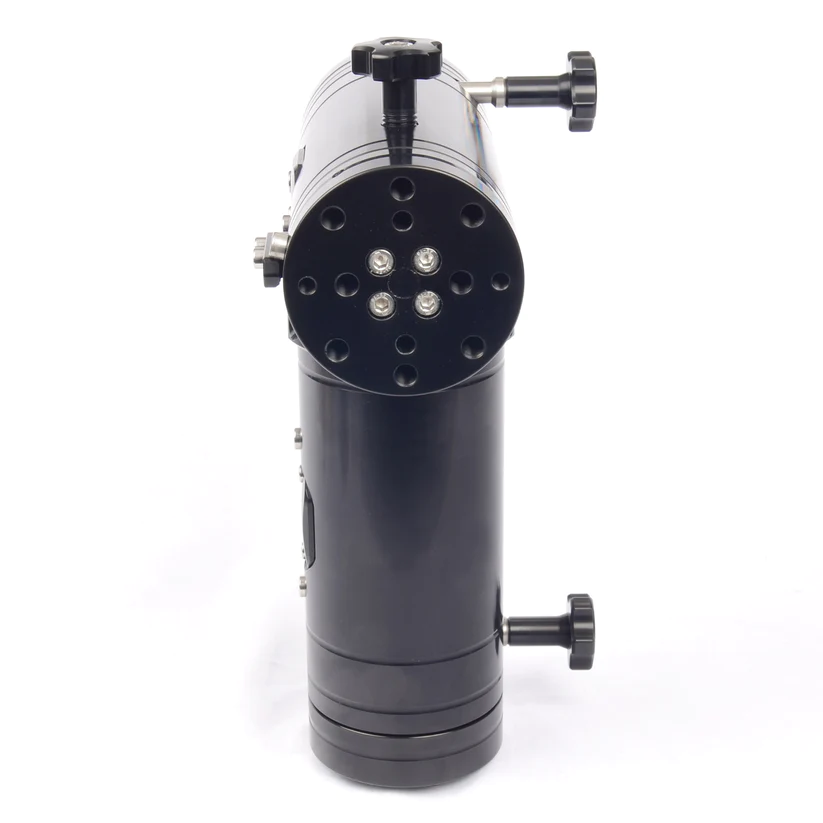

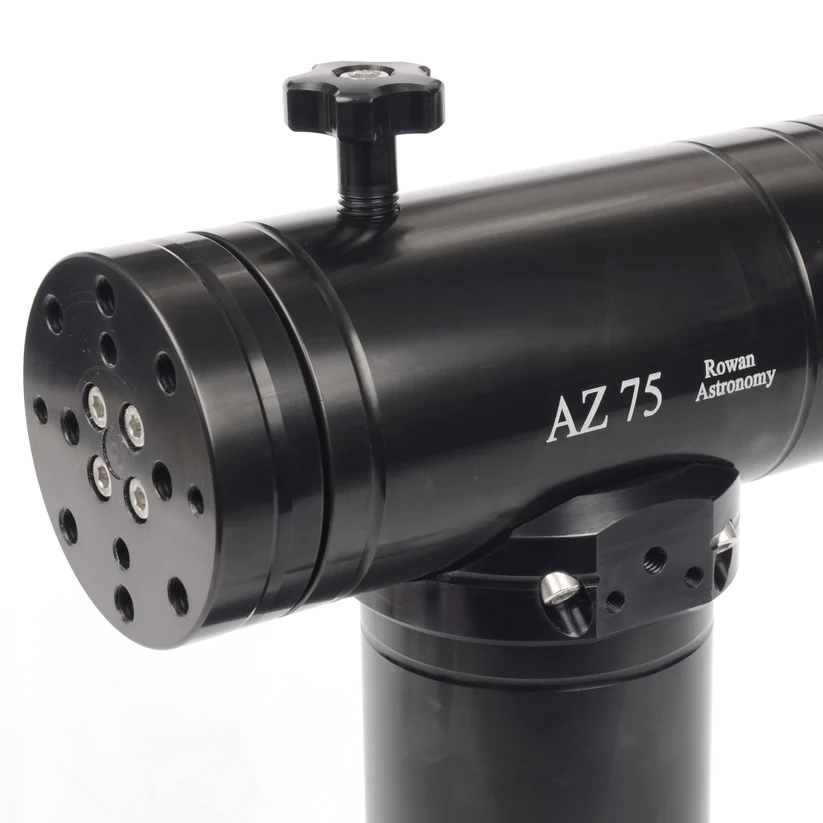

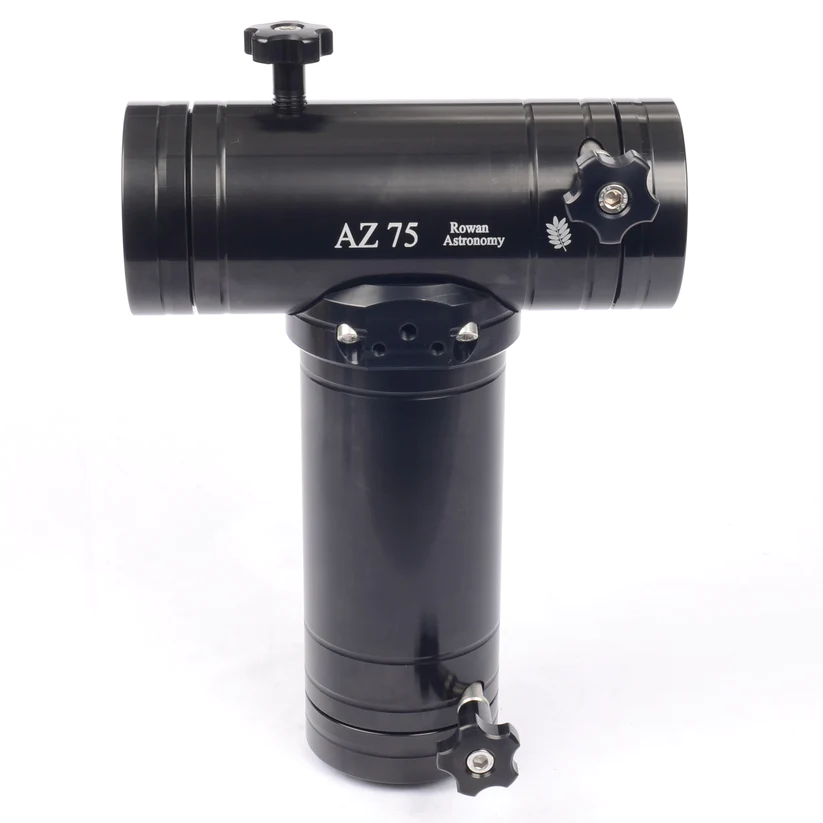

The Rowan AZ75 is like a miniature version of the AZ100 but without slow-motion controls. One may think of it as a dual mount version of our venerable Stellarvue M002C mount both in its higher capacity and function. It operates using friction clutches to control the drag in place of the slow-motion controls used on the AZ100 mounts. The AZ75 mount head is a better option for use with the SVX127D and SVX130T. For our larger telescopes, we recommend the AZ100.

Details:

CNC machined and black anodized finished and fitted with stainless steel hardware.

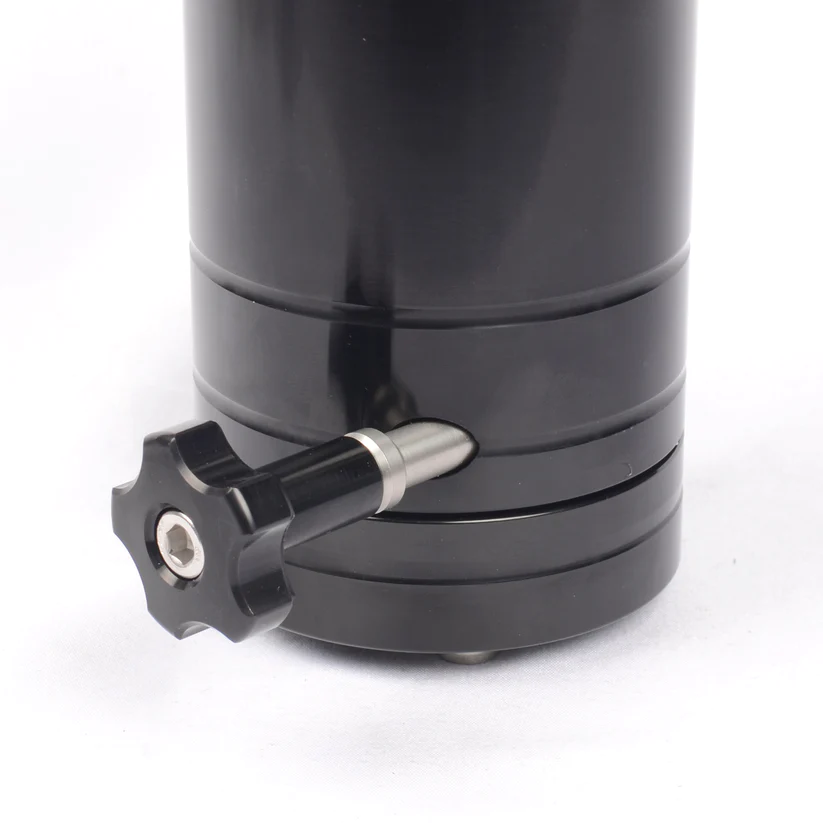

Features include adjustable friction clutches on both axis for smooth push-to observing.

32mm diameter aluminum axis shafts supported in high quality ball and taper bearings.

Load capacity is 33 lbs each side depending on scope length.

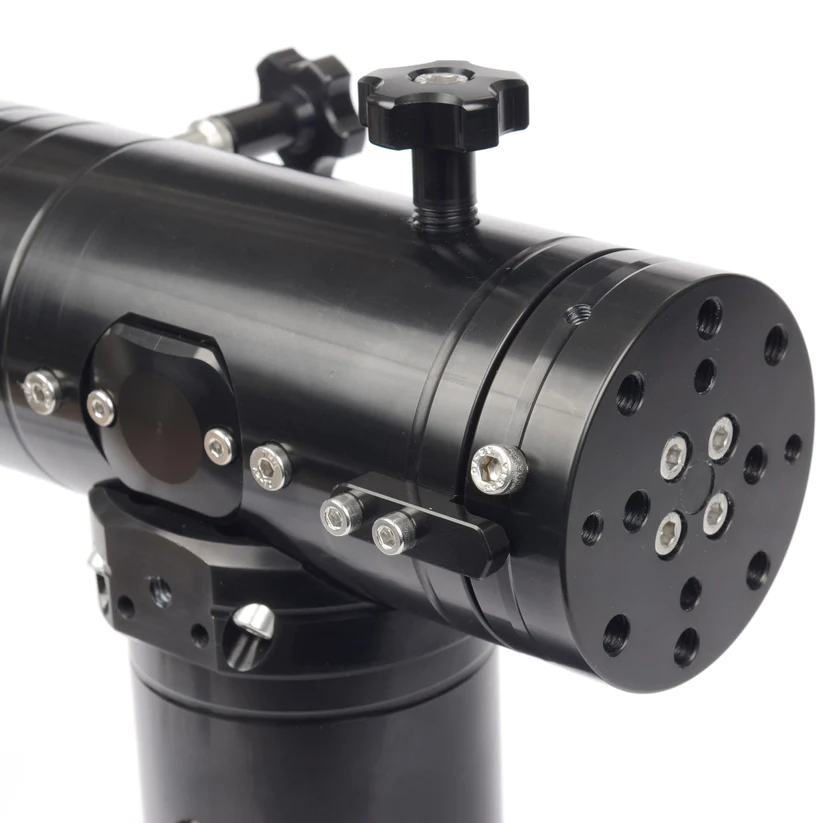

Top elevation axis lock for eyepiece changes.

Mount weight 9 lbs

Mount weight with 2 x V saddles 4.4kg

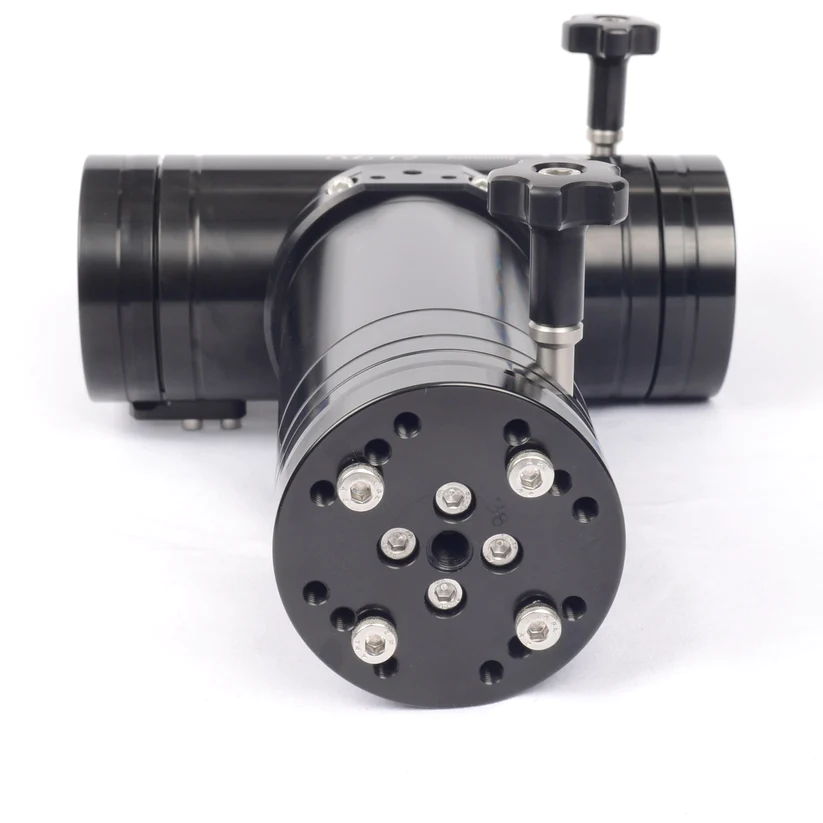

Mount base can be supplied with option for M12, M10 or 3/8" unc tapped hole to attach to tripods.

AZ75 is compatible with AZ100 saddles.

Options for the base mount:

Compact 'V' section saddle. 170mm long with 2 clamps.

Pan-tilt handle.

Counterweights and counterweight shaft.

To convert this mount into a "push-to" mount:

Internally mounted renishaw 122,000 step encoders.

Nexus DSC Pro with Wi-Fi. DSC shelf.
