This is the standard dovetail shoe that comes on the Stellarvue FSV25B focuser.
This shoe may be used with our standard dovetail shoe (DA) and our new TPFD dovetail rail which is used on our AT ring system.

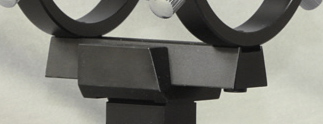

Please note: This shoe is not designed for the old dovetail rail that is narrower and was once supplied with Stellarvue rings. This discontinued rail is shown to the left. The new TPFD rail is much wider. If you want to use this shoe with your older rings you must also replace the old, narrow rail with the TPFD rail.
6 Reviews Hide Reviews Show Reviews
Works Fine for TEC 140, with mod
Solid build quality. Really appreciate the detailed dimensions Stellarvue provides. I knew it was going to be close—turns out the lateral slots barely fail to reach wide enough for an FT3545 focuser (on TEC 140). I made it work by reaming the slot ends just a hair wider, and at an angle to match the focuser holes. Would have been nice if this worked out of the box on such a (relatively) common refractor. But it works fine in the end and I’m happy.
FB Dovetail Shoe
Did them job, but be careful overtightening the screws on the front & back of the shoe (not the two side screws) because the shoe base is rather delicate and can start bowing towards the telescope OTT.
Dovetail plate fits perfect
Thank you it worked out great
Perfect for Newtonian
Very good product.
This shoe is the best in its price range
Fits my 2.5" FT focuser beuatifully. It s was either this for $14 or $50 for the FT version which I thought was way over priced. This works like it should and the quality is the same as FT if you ask me, I'll buy two!
