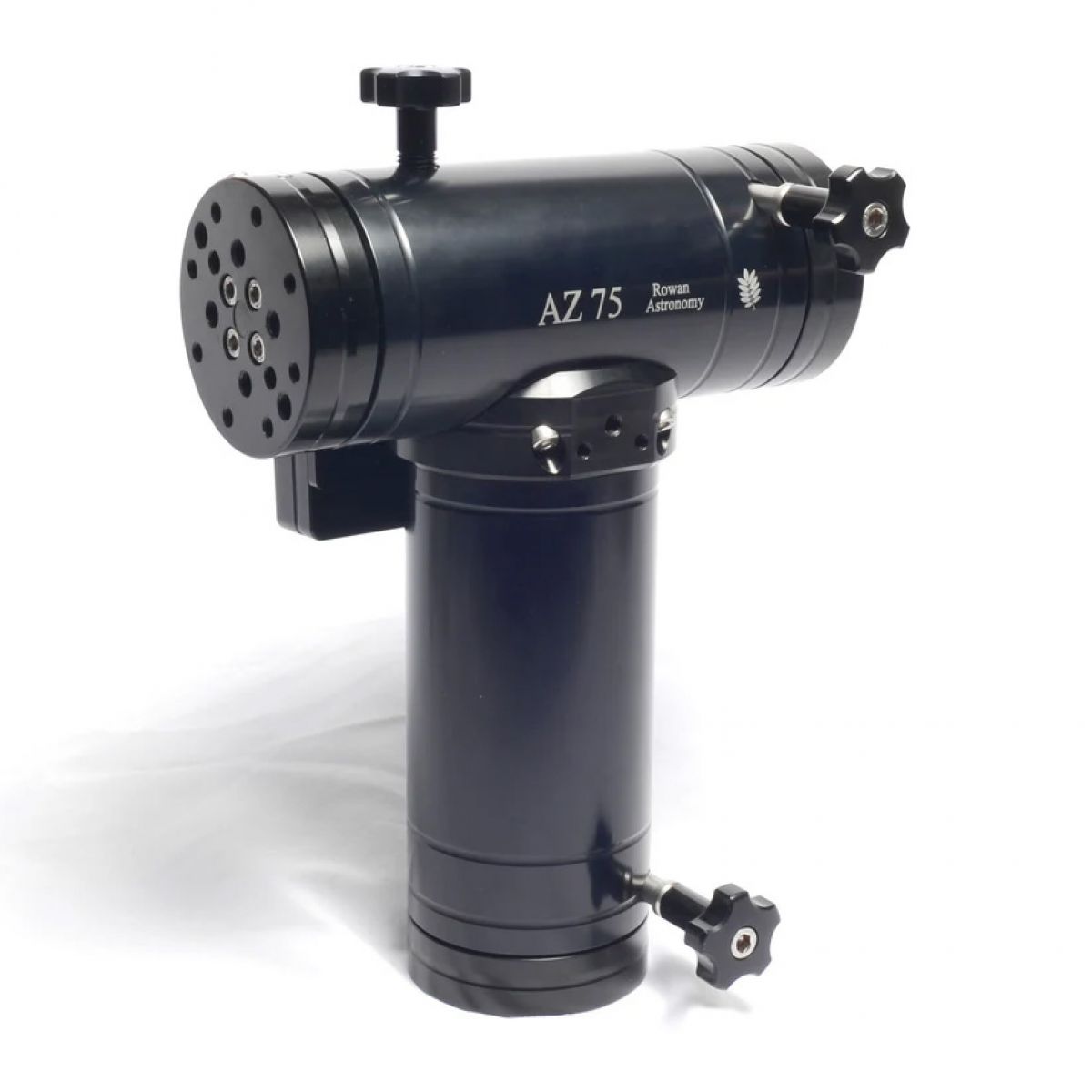

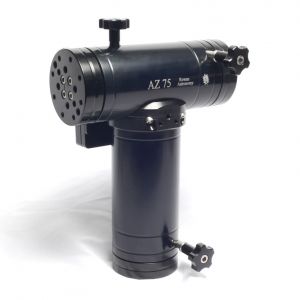

AZ75 Alt-Az Mount With Encoders Fitted + Rowan DSC100

Type a description for this product here...

CNC machined and black anodized finished and fitted with stainless steel hardware.

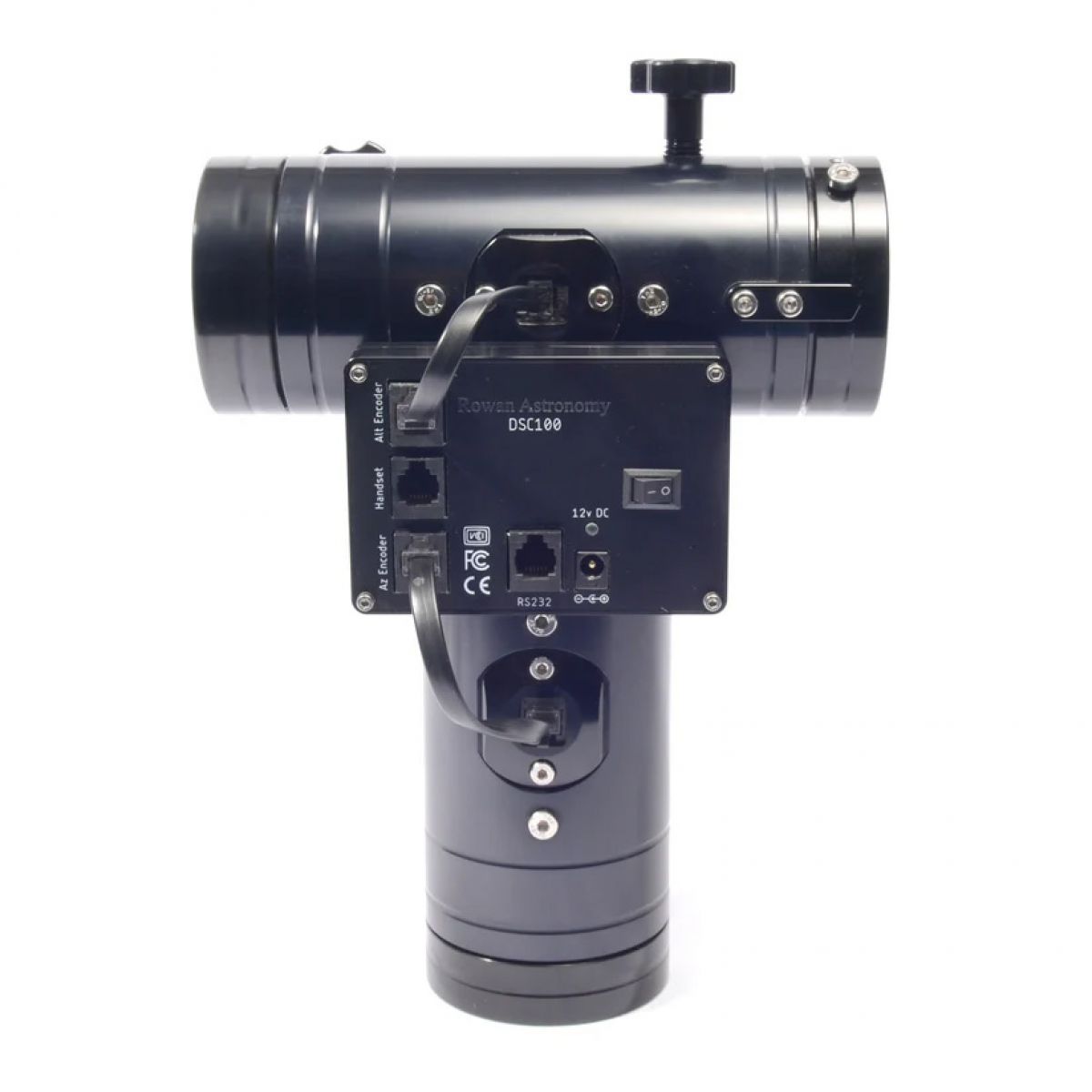

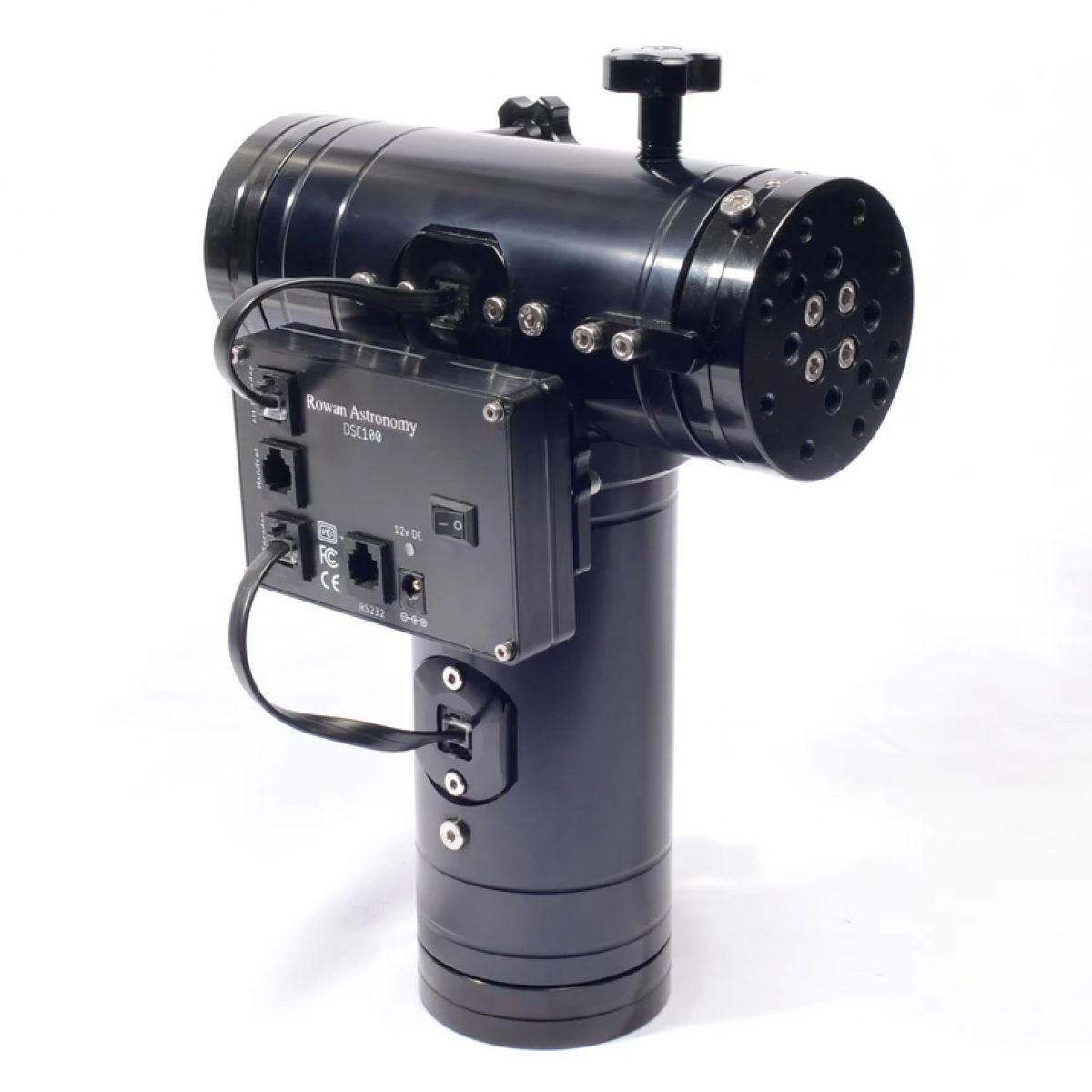

Features include Rowan DSC100 digital setting circle controller and Renishaw 122,000 step encoders.

The DSC100 provides a wireless connection to a phone or tablet to display the built-in planetarium or connection to Sky Safari

The DSC100 is supplied in a CNC machined aluminum enclosure, aluminum mounting bracket and 5-12vdc USB power converter cable.

A separate 5Vdc USB power pack or 12 Vdc power supply is required.

Adjustable friction clutches on both axis for smooth push-to observing.

32mm diameter aluminum axis shafts supported in high quality ball and taper bearings.

Load capacity is 33 lbs each side depending on scope length.

Top elevation axis lock for eyepiece changes.

Mount weight 9 lbs

Mount weight with 2 x V saddles 9.7kg

Mount base can be supplied with M12, M10 or 3/8" unc tapped hole to attach to tripods.

AZ75 is compatible with AZ100 saddles.

Options for base mount.

Compact 'V' section saddle. 170mm long with 2 clamps.

Pan-tilt handle.

Counterweights and counterweight shaft.
